ECOFLOW STATUS MONITOR
The EcoFlow Status Monitor (EFSM) is a DIY status monitor panel for your EcoFlow Delta Pro solar battery system. It connects to the EcoFlow DIY Data Servers and both displays and records the battery and solar state information for up to 2 Delta Pro's with up to 2 external batteries each. It consists of an ESP32 WiFi capable processor with a 32GB SD Card for storage, a buzzer for audible-alerts, and a number of 7-segement displays & LEDs for data display. It also hosts its own web pages for easy configuration & recorded data access.
Note: This product is built and sold by Bantune Electronics LLC and is not affiliated with or endorsed by Ecoflow Technology Inc.
IMPORTANT: You must obtain an ACCESSKEY & SECRETKEY to configure the Status Monitor for use. To generate keys go to https://developer.ecoflow.com and click on the "Become A Developer" button, then follow the instructions.
PRICES & HOW TO GET ONE
These devices are hand-made and take significant build-time to craft and put together. As such, requests for a panel will be put on a list and fulfilled as units become available.
The panels come in 4 hardware configurations, each with 2 color schemes (color doesn't affect cost). I would like to offer four pre-built configurations, and then (maybe) at some time in the future offer the circuit boards as a less-expensive semi-kit option to allow DIYers to create their own panel cases. For now, prices are as follows (in $USD) (subject to change):
| Model | Price |
|---|---|
| Standard Single-DP (4 displays) | $180 |
| Standard Double-DP (8 displays) | $250 |
| Deluxe Single-DP (9 displays + marching dots) | $300 |
| Deluxe Double-DP (18 displays + marching dots) | $400 |
TO ORDER ONE: Send an email to efsm@bantune.com. with your order request (model & color). I will place you on the order list and send you a confirmation reply email. Once the panel you requested is ready, I will email you a payment invoice (including tax & shipping) which can be paid via PayPal or by sending me a check via snail-mail (address to be supplied with the invoice). Upon payment receipt I will ship the panel to you. Any questions or suggestions can be sent to the same email address and I will try to respond as soon as I can. Thanks!
More detailed information can be found in the
USERS MANUAL.

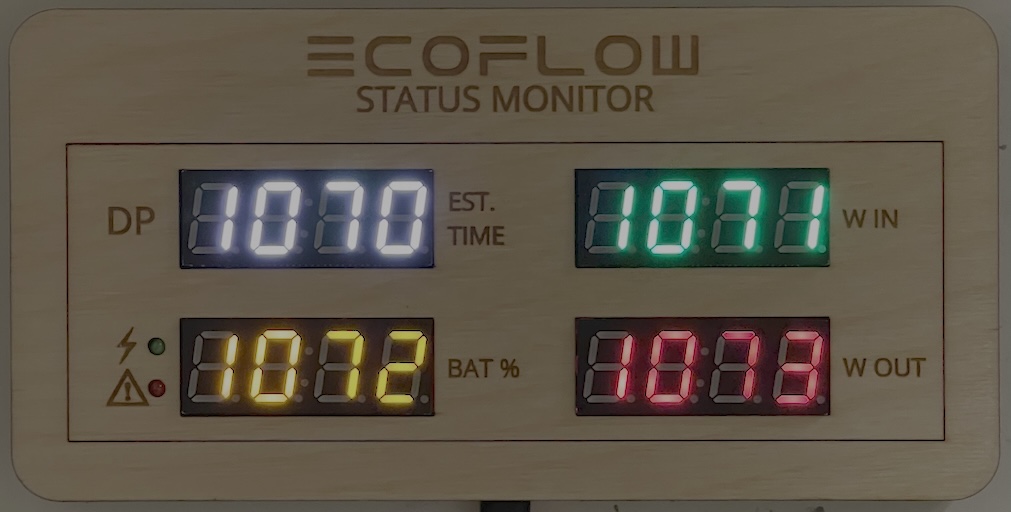

Below are images of various models & color schemes. Enjoy!

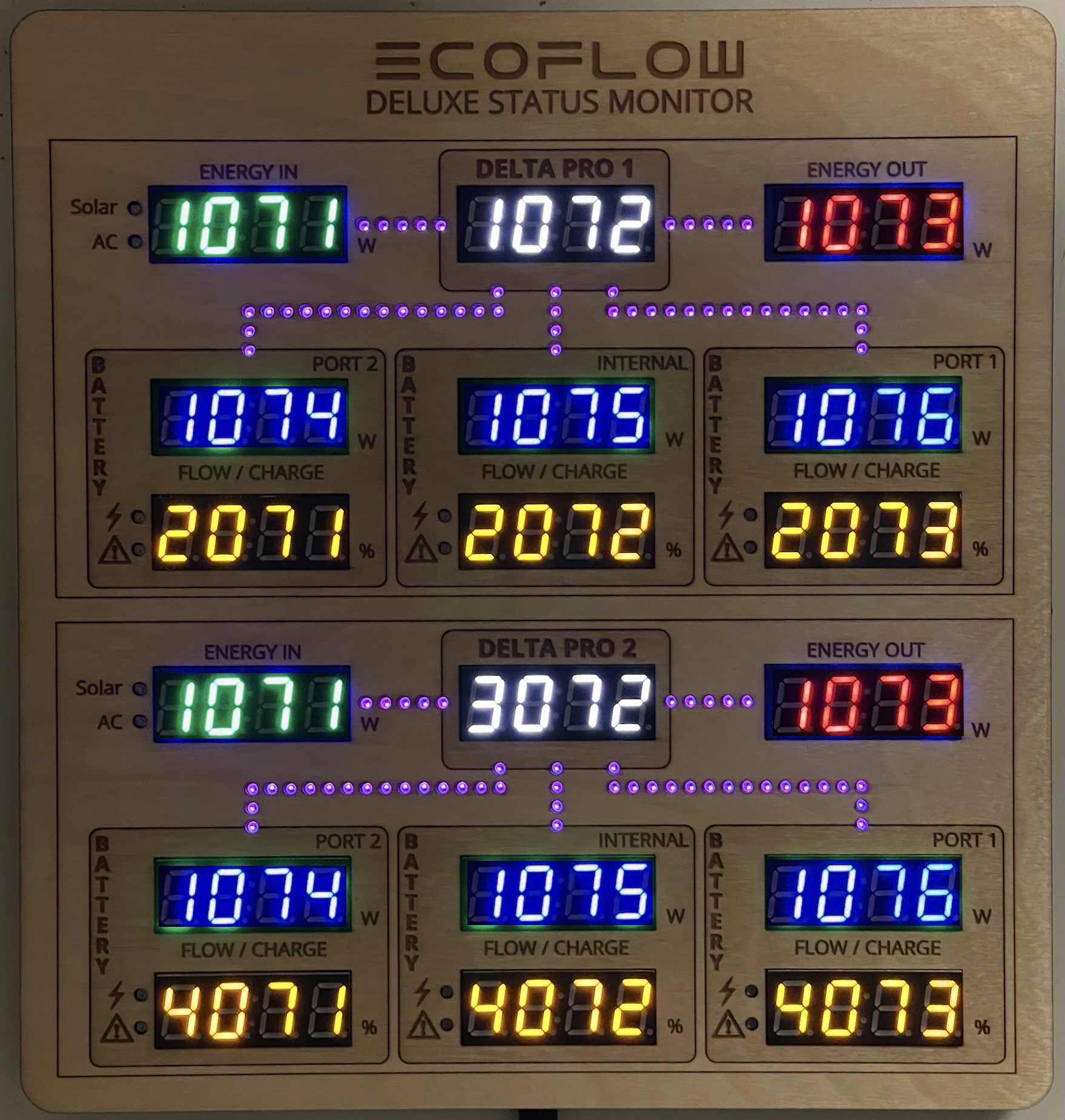

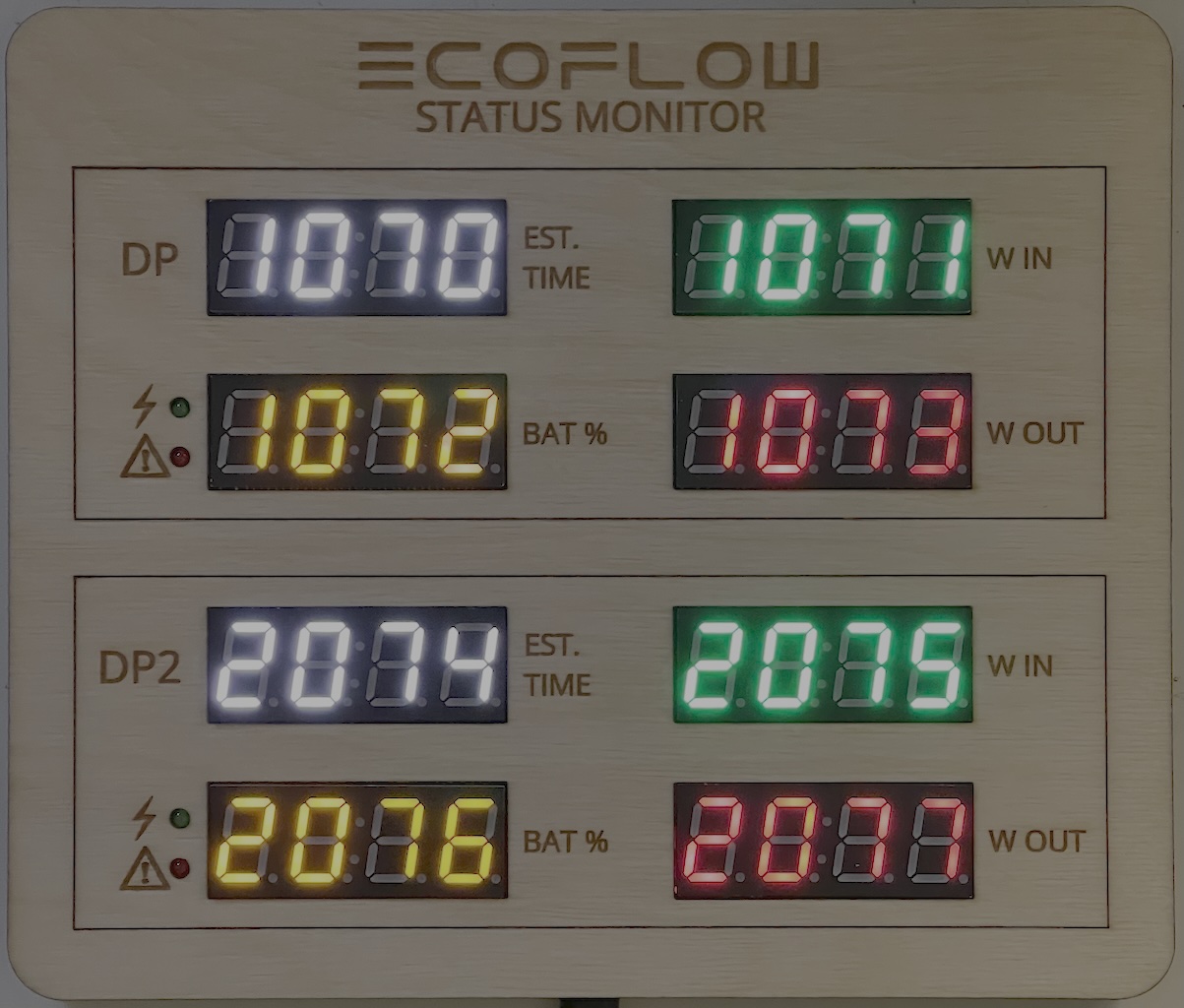

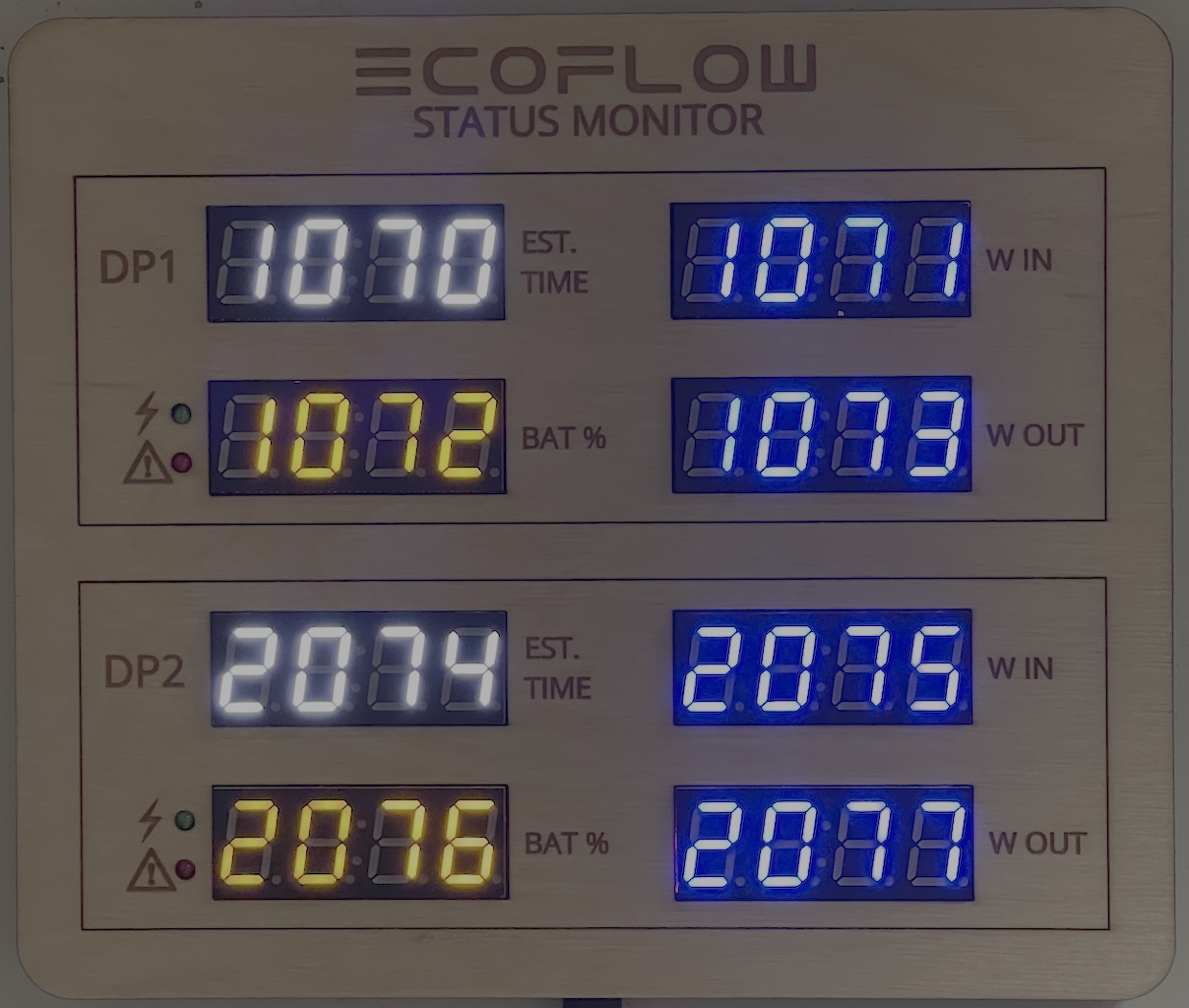

Dual DP Standard Model, Alternate Colors

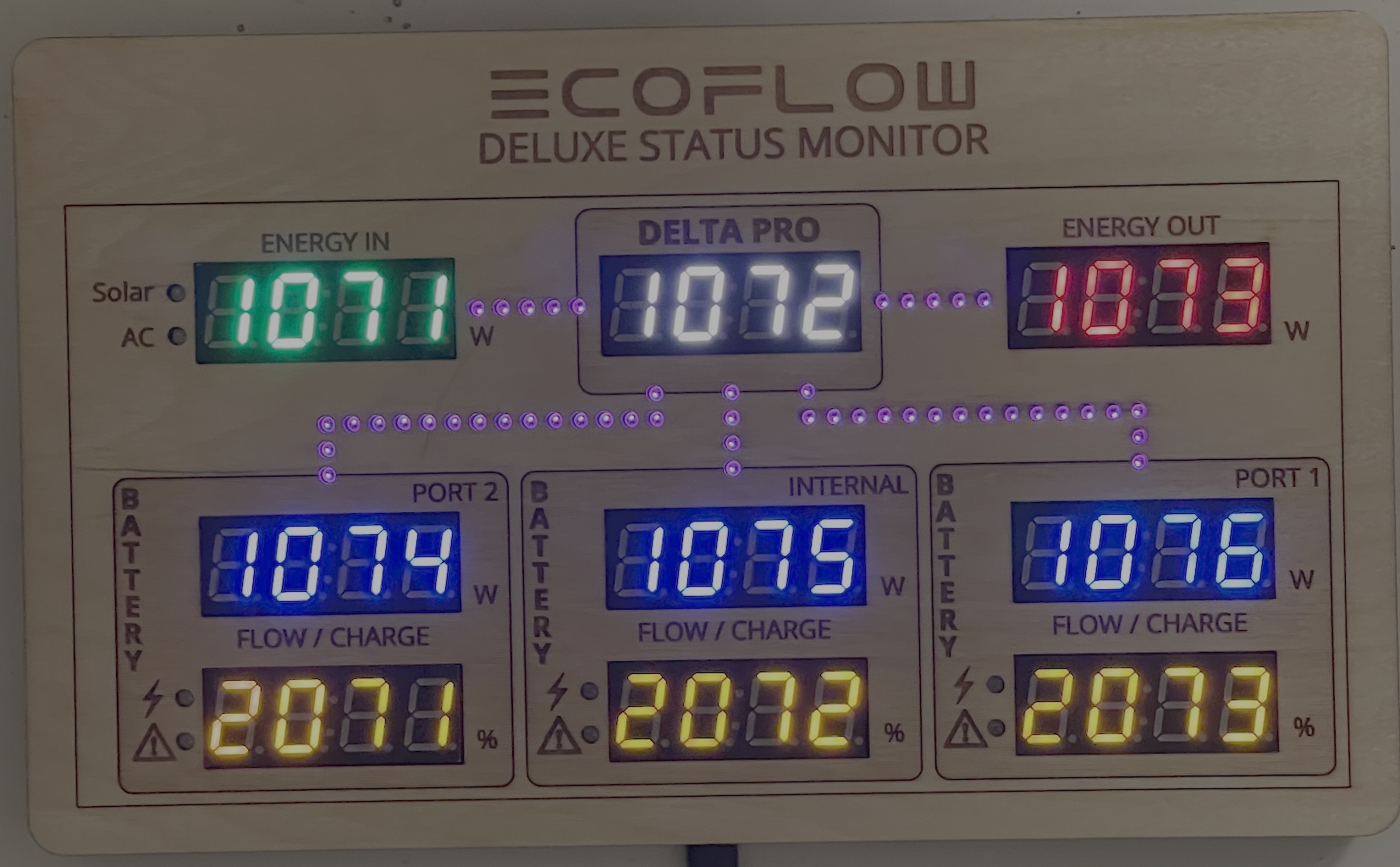

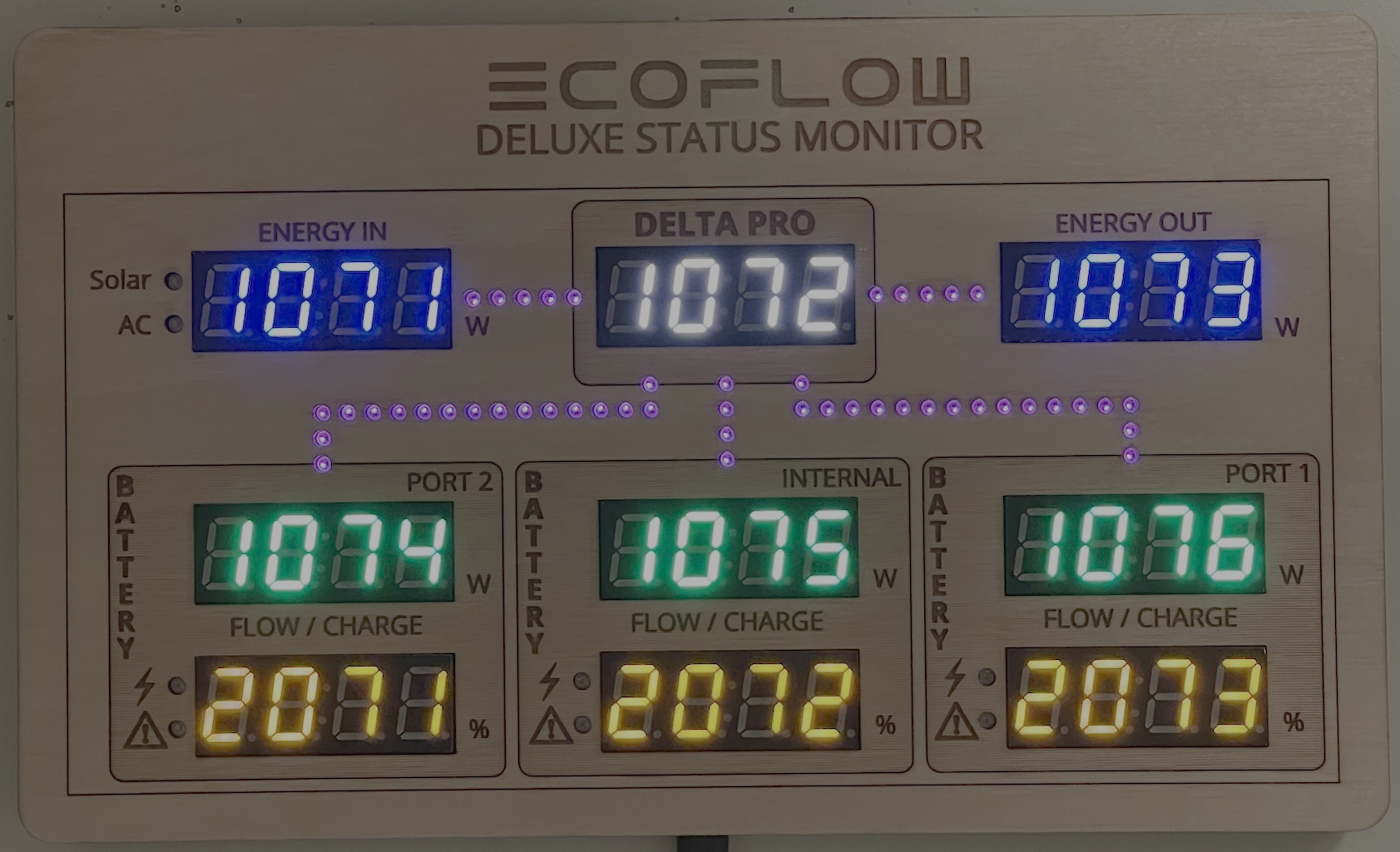

Single DP Deluxe Model, Standard Colors
Work table showing various models
Main Data Page (graphs)
Main Data Page (detailed data)
Statistics: Yearly Energy Totals
4 EFSM models in operation
